GM intake manifold gaskets and other intake manifold related parts. GILBERT CHEVROLET
carries both GM and GMPP intake manifolds. This page shows some of the parts you will need with them. We also carry
intake manifolds from other aftermarket companies. If you don’t see what you are looking for, call and ask,
using our toll free 1-800 number.
Keys - gmintake, gmintakepart |
|
|
| Updated 04-11-2006. |
RATED SAFE AND NON-OFFENSIVE
FOR CHILDREN AND ADULTS
 |
GILBERT CHEVROLET SITE STATS
GILBERT CHEVROLET WEBSITE RANKING
Use sallee-chevrolet.com in rankings search. |
 |
 |
 |
|
| Part # |
Description |
Link |
| 4 CYLINDER |
| 12371032 |
4 cylinder Super Duty Engines Intake Manifold Gasket. For all Super Duty engines.
Technical Notes: Does not fit High Port Special head P/N 10049801. |
-- |
| V6/90° |
| 10134325 |
V6/90° Intake Manifold Gasket. Used to seal intake manifold base P/N 10051125 and cover P/N 10051126. |
-- |
| 10185004 |
V6/90° Intake Manifold Gasket. Used only V6/90° splayed-valve cylinder head P/N 10134394. (2 gaskets and instruction
sheet per part number). |
-- |
| 10134327 |
V6/90° Intake Manifold Deflector. This manifold airflow deflector is for use with intake manifolds for the V6/90°
engine: Part number’s 10051125 and 10051126. |
-- |
| 12520756 |
V6/60° Intake Manifold Gasket. For all 1982 and later models. |
-- |
| BUICK |
| 25500173 |
Buick Stage II Intake Manifold Gasket. This composition intake manifold gasket fits all Stage II cylinder heads. Its
“Print-O-Seal” construction prevents vacuum leaks, and the slotted bolt holes allow precise alignment.
(Discontinued)
Technical Notes: Port openings are 1.30” x 2.40”. |
-- |
| SMALL-BLOCK CHEVROLET |

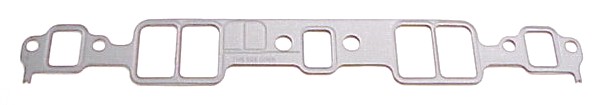

| 10147994 |
SBC Intake Manifold Gasket Set. For all 302-350ci high-performance small-block V8s 1971-86, and all ZZ 350 H.O. high
performance engines.
Technical Notes: Gaskets fit standard intake port location; do not use with raised runner cylinder heads. |
(Pic) |
| 12497760 |
SBC Intake Manifold Gasket Set, Vortec Design, 1/8” thick. This kit is designed for Vortec heads P/N 12529093,
12558060, 12464298 and 12497186 only.
Technical Notes: Gasket thickness is .120” (1/8”), post size is 1.08” X 2.16” with tapered wall and it has both
early style six-bolt pattern and Vortec four-bolt pattern for attaching to cylinder heads. |
(Pic) |
| 89017465 |
SBC Intake Manifold Gasket Set, Vortec Design. This gasket is required for all Vortec design cylinder heads (four-bolt
attachment of manifold to cylinder heads P/N 12529093, 12558060, 12464298, and 12497186). [Old P/N 12529094]
Technical Notes: This gasket requires the use of GM attachment bolt P/N 12550027 because the bolt has a ball
design on the end that seats in the head so it will not crush the intake manifold gasket. |
(Pic) |
| 12528884 |
SBC Intake Manifold Gasket Set, LT4 350. This gasket kit is used on the LT4 kit engine P/N 12371172 which has been
discontinued. |
-- |
| 12367777 |
SBC Intake Manifold Gasket, LT4 350. This new intake manifold gasket kit can be used on all LT4 heads. These gaskets
don’t cover part of the cylinder head opening like the production type does. Requires two per engine. (This gasket
comes one per part number.) |
(Pic) |
| 12524653 |
SBC Intake Manifold Gaskets, LT1 350. These intake manifold gaskets are required when installing a 4BBL manifold on
any LT1 engine. |
(Pic) |
| 10185042 |
SBC Intake Manifold Gasket Set. Used only on the splayed-valve V8 cylinder head P/N 24502517 or P/N 24502517. (2
gaskets per part number). |
-- |
| 10185007 |
SBC Intake Manifold Gasket Set. Used only with Chevrolet V8 “18° high-port” cylinder heads P/N 10134363 and 10134364.
(2 gaskets per part number). |
-- |
| 14094792 |
SBC 350 HO Choke Cover. Used to cover the choke hole on the 350 HO manifold P/N 10185063.
Technical Notes: Use gasket P/N 14096848 and screw P/N 9442184 with washer P/N 9439511. |
-- |
| 06269414 |
SBC 350 HO EGR Valve Cover. Used to cover the EGR valve hole on the 350 HO manifold P/N 10185063.
Technical Notes: Use gasket P/N 10140594 and screw P/N 9442184 with washer P/N 9439511. |
-- |
| 12550027 |
SBC Intake Manifold Bolt set. |
-- |
| BIG-BLOCK CHEVROLET |
| 12506106 |
BBC Intake Manifold Gasket, Rectangular Port Mark V. Used on 454 and 502 HO engines with restricted heat crossover
passages. |
-- |
| 10181398 |
BBC Intake Manifold Gasket Oval Port Mark V. |
-- |
| 12366985 |
BBC Intake Manifold Gasket, 502/502HP Oval Port. This gasket is designed for big-block aluminum heads P/N 12363390,
12363392, and 12363399. Use with manifolds P/N 12363406, P/N 12363407, P/N 12363420, and P/N 12363421. |
-- |
| 10174981 |
BBC Intake Manifold Gasket, 65-81 Oval Port. This intake manifold gasket is used on 1965 through 1981 oval port cast
iron cylinder heads. |
(Pic) |
| 12511789 |
BBC Intake Manifold Gaskets, Rectangular Intake Ports. For all high-performance big-block V8 cylinder heads with
rectangular intake ports.
Technical Notes: This gasket set has blocked heat risers. Does not fit Bow Tie cylinder heads P/N 14044861,
P/N 14044862 P/N 10051128, and P/N 10051129. |
-- |
| 12555320 |
BBC Intake Manifold Oil Shield. An oil splash shield improves engine performance by isolating the intake manifold
from the hot engine oil in the lifter valley. This lowers the temperature of the fuel/air charge and increases
its density. |
(Pic) |
| 12367959 |
Intake Manifold Bolts. This bolt is for any big block Chevrolet engine. The kit includes 16 bolts: 3/8”-16 x 1.5”.
With wide under head flange with a 7/16 hex head, they are rated at 170,000 psi and will give a consistent torque
load. Includes 16 hardened flat washers.
Technical Notes: Four of these washers are smaller in diameter and are used around the front water passages. |
(Pic) |
