SPECIAL ENGINE BUILDING TOOLS | |
| General Motors | |
 |
|
|
GM Oil Pump Primer The only correct way to build up oil pressure in a new engine before initial starting. Part number 12368084 |
|
| MSD IGNITION | |
 |
|
| MSD Weathertight Pin Extraction Tool For Working With Weathertight Connectors Part number 8193 |
|
|
|
|
 |

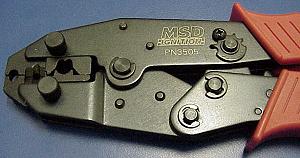

MSD Pro-Crimp Tool. Changeable crimp dies for multi-purpose use. Part number 3505  |
| MOROSO | |
 |
Moroso Spark Plug Indexer. Locates ground wire on 14mm flat or tapered seat plugs. Part number 62160 |
|
|
|
 |
Moroso Crankshaft Sockets. Rotates crankshaft during engine assembly. SB and V6/90° Chevy and Super Duty Pontiac/GM 4 cyl. Part number 61760 |
 |
Big Block Chevy. Part number 61770 |
|
|
|
 |
Moroso Balancer Installers. Used to install Harmonic Balancers. SB Chevy or any engine with a 7/16” - 20 threaded hole in the crank. Part number 61740 |
 |
BB Chevy or any engine with a 1/2” - 20 threaded hole in the crank. Part number 61741 |
|
|
|
 |
Moroso Cylinder Head Work Stand. Supports head on bench during work. Will work with any head. Part number 62080 |
|
|
|
 |
Moroso Magnifying Light. Used for reading spark plugs. Part number 62345 |
|
|
|
 |
Moroso Engine Lift Plate. Bolts onto the intake manifold for easy engine lifting and seals up the engine when in storage. Fits standard Holley as well as Quadrajet type carburetor mounting bolt patterns. Part number 62670 |
|
|
|
 |
Moroso Carburetor Caps. For Holley, Thermoquad and Quadrajet Carburetors with 5-1/8” dia. neck. Part number 65802 For Holley, 4500 Dominator Carburetors with 7-5/16” dia. neck. Not shown. Similar to 65802 except for size. Part number 65803 |
|
|
|
 |
Moroso Carburetor Work Stand. Designed to hold Quadrajet and both standard and spread-bore Holley® carbs. This tool greatly simplifies carburetor work. Manufactured of cast aluminum with open center and mounting pegs. Part number 62070 |
|
|
|
 |
Moroso Engine Cleaning Brushes. It’s important to have a clean block - especially in critical hard to get at areas of the oiling system. Each brush is designed for a specific purpose; there are two each of the oil galley brushes since the the most wear. Can also be used on crankshaft oil holes, cylinder heads, etc. The bristles are made of nylon which cleans as well as wire but does not scratch. Set includes 12 brushes: 2 each of - 1/4” dia. 2” long 10” handle, 5/16” dia. 2-1/2” long 12” handle, 3/8” dia. 2-1/2” long 12” handle. 1 each of - 1/2” dia. 2-1/2” long 34” handle, 5/8” dia. 3” long 34” handle, 3/4” dia. 3” long 34” handle, 7/8” dia. 3” long 12” handle, 1-1/4” dia. 4” long 12” handle, 5” dia. 7” long 18” handle. Part number 61820 |
| Comp Cams | |
 |
Comp Cams Cam Degree Kit.
|
|
|
|
 |
Comp Cams Hi-Tech Master Pushrod Checking Kit. The Comp Cams® Hi-Tech pushrod length checking tools are precision crafted from steel alloy and black oxide for years of accurate measurements. The unique design is easy to read and eliminates the need for expensive calipers. Each complete revolution is equal to .050”. Having the correct length pushrods in your engine is a critical factor in proper rocker arm geometry and this is the best tool to measure pushrod length. I reads like a micrometer. Contains one each of: 7701 5.800” to 6.800” 7702 6.800” to 7.800” 7703 7.800” to 8.800” 7704 8.800” to 9.800” Part number 7705 |
| LUNATI | |
 |
Lunati Rod Bolt Stretch Gauge. Proper clamping force is critical to the life of your connecting rods. Cap screws Need to be stretched the proper amount in order to provide truly accurate torque on the main caps. Professional engine builders have used “bolt stretch” for years as a means to achieve proper clamping force, but stretch gauges have always been priced beyond the reach of most do-it-yourself engine builders. Now you can properly attach the bolts in your rods with this affordable stretch gauge from Lunati. Don’t guess or trust a torque wrench that may not be properly calibrated - stretch your bolts to the proper clamping load. Part number 98401 Note: Chevy Performance stocks the Proform 66788 Rod Bolt Stretch Gauge instead of this one now. We can't tell any difference between the two and the Proform one is less expensive for our customers to buy. |
| Proform | |
 |
Proform Pinion Setting Tool. Most original equipment gears do not contain pinion depth dimensions, so it must be calculated. This is done by measuring the thickness of the pionion gear and subtracting it from the mounting distance. The resulting dimension is the pinion depth. The Universal Pionion Depth Setting Tool may be used to measure pinion depth of most automotive and truck differentials. Measurements are obtained by attaching the tool to the machined bearing cap mating surface in the housing and checking the distance to the pinion gear. Since the mating surface is usually not precisely on the carrier bearing centerline, the difference (offset) must be measured and either added to, or subtracted from, the measured distance, to determine actual pinion depth. Three dial indicator extensions (2”, 3”, and 4”) are included to accommodate a variety of rear end types. Comes with everything in the picture, including the case. Part number 66516 |
| ARP | |
 |
ARP Rod Bolts Aluminum Extensions Kit. A long taper and full radius prevents nicking and scratching of crankshaft journals during connecting rod installation. ARP® rod bolt extensions act as a guide during piston and rod installation - they will also hold the bearing shell in position in some applications. This kit includes 5/16”, 3/8”, and 7/16” extensions in pairs. They are hard anodized and color coded for ease of identification. Part number 910-0005 |
|
|
|
