Chevrolet - STOCK 4L85E AUTOMATIC TRANSMISSIONS

These stock 4L85E four-speed automatic transmission assemblies feature electronic control of shift points, shift feel, and torque converter clutch application.      Keys - gmtransmission, gmtransmissionpart

WEB SITE NAVIGATION INFORMATION

If you have you just came from a search engine and are stuck with no navigation, turn on Java Scripts in your Web browser, reload the page, then you can turn off Java Scripts again. Also, people using Internet Explorer have to use the pull down tab next to the back button to return to a search engine. More information on this is on our help page.

GM and Chevrolet part prices are in the Price & Parts search. Keys are to be used with the Price & Parts Search. Enter a Key, part number, GM, SC, or a key word, like 502, into the Price & Parts search to see if we have it on our site. Use GM for a list of both GM and GMPP parts. Use SC for a list of all Chevrolet exclusive parts. Aftermarket company prices are on downloadable Price Sheets or on their pages. The Page Search is for searching the pages of our Web site. More information on this is on our help page.

GM AND GMPP TRANSMISSIONS NAVIGATION

GM Transmission Main Page
4L60 Remanufactured Performance Four-Speed Automatic	GM Stock Replacement T56 Six-Speed Manual
4L60E/4L65E Four-Speed Automatic	GM Performance Close Gear Ratio T56 Six-Speed Manual
4L85E Four-Speed Automatic	Transmission Parts Page

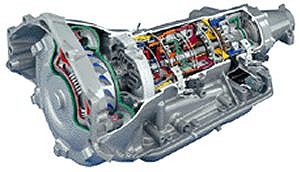

4L85E TRANSMISSIONS

24221098 - 4L85-E Four speed rear-wheel-drive, electronically controlled, automatic overdrive transmission with a torque converter clutch. GM has changed the part number on this transmission to 24227618. P/N 24227618 is a remanufactured transmission with a core charge. GM may bring back P/N 24221098, we are trying to get more information on this from them. We can only order P/N 24227618 at this time.      This is the best performance four speed automatic transmission that GM Performance Parts offers, rated for a maximum engine torque of 460 lb.-ft. This 2 wheel drive version of the 4L85E automatic transmission and includes torque converter. It is used in the current model GM Heavy Duty Trucks. Using a die cast aluminum case keeps the total transmission at only 255lb. The gear ratios are 1st - 2.482, 2nd - 1.482, 3rd - 1.000, 4th - 0.750, and reverse is 2.077. The converter size is 310mm (diameter of torque converter turbine), with maximum shift speeds at 5200 RPM for all gears. Technical Note: This transmission has the conventional Chevrolet bolt pattern for attaching to engine. Use DEXIII fluid type. 4L85E gear ratios: 1st 2.482, 2nd 1.482, 3rd 1.000, 4th 0.750, Reverse 2.077. Engine Range: 4.8L - 8.1L Gasoline, 6.5L Diesel (MN8) Maximum Shift Speeds: 1-2 5200 rpm (MN8), 2-3 5200 rpm (MN8), 3-4 5200 rpm (MN8) Maximum Engine Torque: 460 lb-ft (MN8) Maximum Gearbox Torque: 885 lb-ft (MN8) Converter Size: 300mm (MN8) (reference), Diameter of torque converter turbine. Fluid Capacity (Approximate): Bottom Pan Removal 4.0L - 6.0L (4.2 qt - 6.3 qt) Case Material: Die Cast Aluminum Assembly Sites: Ypsilanti, MI Technical Notes: Use with transmission controller P/N 12497316. (No core charge required on this transmission)

24221100 - 4L85-E Four speed rear-wheel-drive, electronically controlled, automatic overdrive transmission with a torque converter clutch. GM has changed the part number on this transmission to 24227619. P/N 24227619 is a remanufactured transmission with a core charge. GM may bring back P/N 24221098, we are trying to get more information on this from them. We can only order P/N 24227619 at this time.      This is the best performance four speed automatic transmission that GM Performance Parts offers and is rated for a maximum engine torque of 460 lb.-ft. This 4 wheel drive version of the 4L85E automatic transmission includes torque converter. It is used in the current model GM Heavy Duty Trucks. Using a die cast aluminum case keeps the total transmission at only 255lb. The gear ratios are 1st - 2.482, 2nd - 1.482, 3rd - 1.000, 4th - 0.750, and reverse is 2.077. The converter size is 310mm (diameter of torque converter turbine), with maximum shift speeds at 5200 RPM for all gears. Technical Note: This transmission has the conventional Chevrolet bolt pattern for attaching to engine. Use DEXIII fluid type. 4L85E gear ratios: 1st 2.482, 2nd 1.482, 3rd 1.000, 4th 0.750, Reverse 2.077. Engine Range: 4.8L - 8.1L Gasoline, 6.5L Diesel (MN8) Maximum Shift Speeds: 1-2 5200 rpm (MN8), 2-3 5200 rpm (MN8), 3-4 5200 rpm (MN8) Maximum Engine Torque: 460 lb-ft (MN8) Maximum Gearbox Torque: 885 lb-ft (MN8) Converter Size: 300mm (MN8) (reference), Diameter of torque converter turbine. Fluid Capacity (Approximate): Bottom Pan Removal 4.0L - 6.0L (4.2 qt - 6.3 qt) Case Material: Die Cast Aluminum Assembly Sites: Ypsilanti, MI Technical Notes: Use with transmission controller P/N 12497316. (No core charge required on this transmission)
