GILBERT CHEVROLET - RAM JET 350 AIR CLEANER AND INTAKE MANIFOLD DIMENSIONS | |
| The all new Ram Jet 350 uses state of the art components. Unlike some after market systems, Ram Jet offers great cold starts, hot starts, always ideal air to fuel ratios and exceptional throttle response, power and driveability. The air cleaner on this page is the one of the only two air cleaners we have available for the Ram Jet 350 crate engine. Below the air cleaner is the GM Drawing of the Ram Jet 350 intake manifold showing its dimensions. | |||||||||||||
| |||||||||||||
|
WEB SITE NAVIGATION INFORMATION | |
| If you have you just came from a search engine and are stuck with no navigation, turn on Java Scripts in your Web browser, reload the page, then you can turn off Java Scripts again. Also, people using Internet Explorer have to use the pull down tab next to the back button to return to a search engine. More information on this is on our help page. |
| GM and GILBERT CHEVROLET part prices are in the Price & Parts search. Keys are to be used with the Price & Parts Search. Enter a Key, part number, GM, SC, or a key word, like 502, into the Price & Parts search to see if we have it on our site. Use GM for a list of both GM and GMPP parts. Use SC for a list of all GILBERT CHEVROLET exclusive parts. The Page Search is for searching the pages of our Web site. More information on this is on our help page. |
 |
 |
|
|
RAM JET 350 NAVIGATION | |
| Ram Jet 350 Main Page | Ram Jet 350 More Options And Intake Dimensions |
| We have more GM and GILBERT CHEVROLET Performance Engines available. We have more GM Stock Replacement Long-block Goodwrench Engines available. We have more “Gen 3” and “Gen 4” Design Engines available. (LS1, LS2, LS6, LQ4, LS7) |
|
|
|
|
|
RAM JET 350 AIR CLEANER | |
 |
 |
|

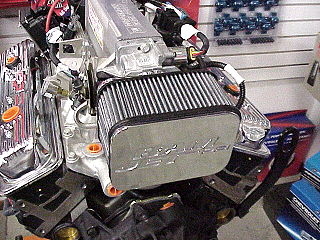

Ram Jet 350 Street & Performance Air Cleaner
This is an option for the Ram Jet 350 which comes in show chromed or show polished.P/N SBRJAC - Show Chromed, 3” Filter and P/N SBRJACP - Show Polished, 3” Filter |
|
90° Low Profile Water Necks
This solidly made low profile 90° angle aluminum show chromed water neck not only makes routing of the water hose easier, but is also at home in any show class vehicle.• P/N RJWN, Show Chromed |
|
|
Ram Jet 350 Fuel Line Kit
This fuel line kit makes connecting your vehicle’s fuel line to the Ram Jet intake a snap. The steel braided flexible hose makes it easy to route to where your vehicle’s fuel line is located at. The fuel line kit comes complete with instructions, mounting bracket, and all the fittings needed for installation.P/N SBRJFLRE • Two pre-installed fittings for connecting to vehicle fuel lines are AN-6. • Two 24” #6 steel flexible hoses. • Two pre-bent 3/8” tubes with fittings. • One 90° elbow fitting for mounting to the passenger side fuel rail (fuel inlet). |
The Ram Jet fuel line kit comes with steel braided hose for both the incoming and return fuel. The ends of the #6 braided hose has AN-6 female fittings on the ends where you connect into your vehicle fuel lines. |
The two lines are strap (strap included) mounted to the intake manifold with both lines running under the computer and distributor. One line (inlet line) comes up and ties into the end of the fuel rail on the passenger side of the manifold with an 90° elbow (supplied). |
The other line (return line) runs under and behind the distributor across to the other side of the manifold. |
On the other side of the manifold the return line then turns up and screws into the stock fuel regulator with the fitting on the end of the line. |
This photo shows the return line connected to the stock fuel regulator. The fuel regulator is connects into the end of the drivers side fuel rail and is mounted to it. A line runs from the top of the fuel regulator to the intake manifold to pick up manifold vacuum which is used to operate the fuel regulator. |
| This is a picture of the completed fuel line kit. The mounting strap and instructions are in the plastic bag tied to the hoses. | |
|
Edelbrock EFI Electric Fuel Pump
This electric EFI fuel pump made by Edelbrock delivers 57 gph @ 45psi and comes with two wire connectors, two 3/8” hose barb inlet/outlet connectors, mounting straps, foam rubber cover, and an Edelbrock decal.P/N 3594 |
|
|
Ram Jet 350 Vacuum Break Line Kit
This Chrome 3/8” Vacuum brake line mounts to the intake manifold with a strap that is included. One end of the line fits into the back of the intake manifold with included 90° elbow fitting. The end of the line is barbed for installing a flexible hose. The picture on the right shows the Ram Jet 350 vacuum break line kit installed. Circled areas in this picture are shown in the bigger pictures below. Below these pictures is a photo of the Ram Jet vacuum break line by itself with everything included with this kit. The line comes pre-bent but may need some minor additional bending to fit your situation. We recommend that you get a small size tube bender if you need to make minor adjustments in the tube bends.P/N SBRJBL |
|
|
GM Fuel Filter
This is the fuel filter (shown at right) that Gilbert Chevrolet suggest using with the Ram Jet 350. It will require fitting to install with the Ram Jet 350. We use Russell P/N 648060 aluminum fittings (shown below).P/N's GM 25171792, ACDelco GF652 Russell Fittings
These Russell fittings are AN-6 to 16mm X 1.5 and work with the GM P/N 25171792 fuel filter pictured on the right. Russell P/N 648060 |
|
|
|
|
|
RAM JET 350 INTAKE MANIFOLD DIMENSIONS | |
|

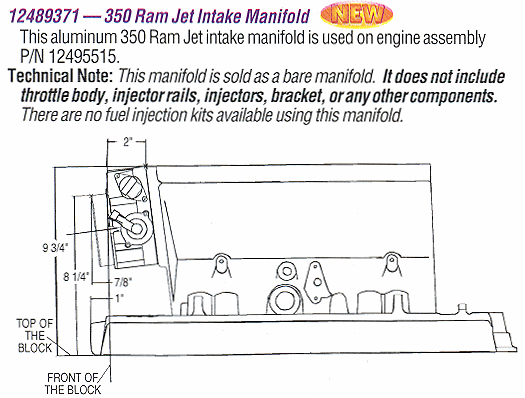

This picture was scanned out of one of the GMPP catalogs. It’s purpose is just to give you the dimensions
of the Ram Jet 350 intake manifold. You can ignore the comment on the picture about no kits being available since one is available now. The intake assembly kit is P/N 12498032. This kit includes most components except ECM and wire harness. Use the part number with the price search above to get the price. |
|
 |
|
|
|
