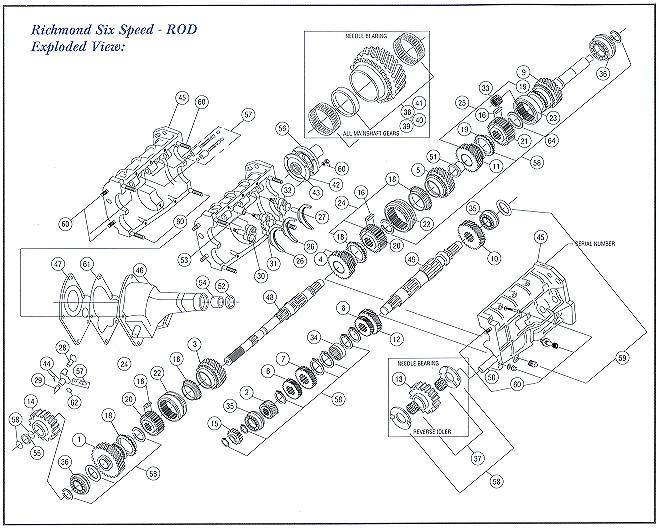

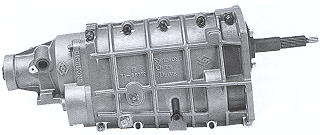

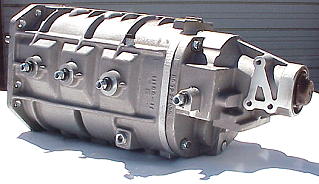

| The Richmond Six Speed - ROD is used performance cars, street rods, and just plain old fun highway cruising. This page shows one of the Richmond Six Speed ROD overdrive manual transmissions along with dimensions, pictures, shift pattern, capacities, and gear ratios. There is also a picture of the 6 speed shifter that is included. | |||||||||||||
 |
| ||||||||||||
|
WEB SITE NAVIGATION INFORMATION | |
| If you have you just came from a search engine and are stuck with no navigation, turn on Java Scripts in your Web browser, reload the page, then you can turn off Java Scripts again. Also, people using Internet Explorer have to use the pull down tab next to the back button to return to a search engine. More information on this is on our help page. |
| GM and GILBERT CHEVROLET part prices are in the Price & Parts search. Keys are to be used with the Price & Parts Search. Enter a Key, part number, GM, SC, or a key word, like 502, into the Price & Parts search to see if we have it on our site. Use GM for a list of both GM and GMPP parts. Use SC for a list of all GILBERT CHEVROLET exclusive parts. Aftermarket company prices are on downloadable Price Sheets or on their pages. The Page Search is for searching the pages of our Web site. More information on this is on our help page. |
 |
 |
|
|
RICHMOND TRANSMISSIONS NAVIGATION | |
| | Richmond Index | Super T- 10 Four Speed | Street Five Speed | Six Speed - ROD | Transmission Fluid | |
|
|
|
|
RICHMOND SIX SPEED ROD OVERVIEW | |
 |
Richmond Six Speed Rod Six Speed Manual Transmission Click on the logo to visit Richmond’s Site. |
| For prices, enter the Part Number for one of the transmissions or just type in Richmond to get the prices for these transmissions. Type in transmission to get transmissions and transmission related parts. You can also use the key at the top of the page. | |
|
The RICHMOND Six Speed overdrive transmission was designed with the driving enthusiast in mind. The six speed
transmission is made in the U.S.A. by American Craftsmen using the latest CNC machining and in house heat treat. Based on our bullet proof
five speed design, the RICHMOND ROD has another gear-to-grab overdrive! Aided in design with NASCAR proven technology, the RICHMOND ROD features smooth, positive and fast shifting. Available in multiple gear ratios, the ROD delivers strong, light weight performance. Overdrive ratios are available from .91 to .52. Engineered with a pro-quality approach, the RICHMOND ROD delivers the strength and performance you expect! |
|
 |
 |
 |
The Richmond Six Speed overdrive transmission was designed with the driving enthusiast in mind.
The six speed transmission is made in the USA by Ameirican Craftsmen using the latest CNC machining and in house heat
treat. Based on our bullet proof five speed design, the Richmond ROD has another gear-to-grab overdrive. Aided in
design with NASCAR proven technology, the Richmond ROD features smooth, positive and fast shifting. Available in
multiple gear ratios, the ROD delivers strong, light weight performance. Overdrive ratios are available from .91
to .52. Engineered with a pro-quality approach, the Richmond ROD delivers the strength and performance you expect.

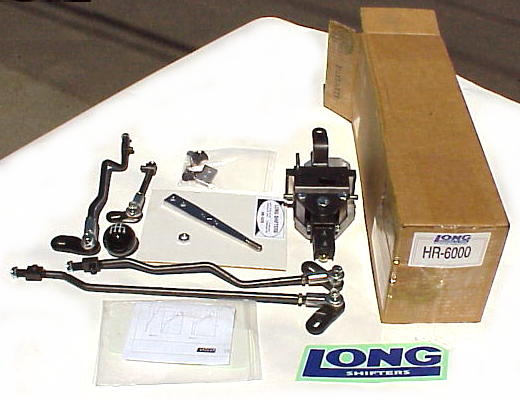

This transmission also comes with a LONG™ 6 speed shifter (P/N HR-600). Photo is shown below.Technical Notes: 8 tooth speedometer gear. |
 |
|
|
|
|
LONG SHIFTER HR-6000 | |
 |
|
|
|
|
RICHMOND 6 SPEED ROD TRANSMISSIONS MOUNTING SPECIFICATION GUIDE | |
| P/N (All Ratio Letters) | Application | A Dim | B Dim. | C Dia. | D Dia. | E Dim. | F Dim. | G Spline | H Dim. | J Dim. |
| 7021626 | GM | 6.66 | 1.06 | .590 | 4.683 | 21.57 | 3.22 | 1 1/8-26 | 20.75 | 2.00 |
| Center Distance: | 3.50 Inches | Case & Extension Housing Material: | Aluminum |
| Oil Capacity: | 2 US Quarts (2.5 US Quarts for GM T-5 Version.) |
Controls: | Side Lever |
| Approximate Dry Weight: | 108 lbs. |
|
|
|
|
RICHMOND 6 SPEED ROD GENERAL SPECIFICATIONS | |
| P/N | Description | 1st | 2nd | 3rd | 4th | 5th | 6th | Rev. | Torque |
| 7021626AA | GM 1 1/8”-26 Spline | 3.28 | 2.14 | 1.57 | 1.24 | 1.00 | 0.76 | 4.79 | 450 Ft. Lbs. |
| 7021626AK | GM 1 1/8”-26 Spline Special Heavy Duty 9 DP Road Race 6th Gear Sets |
3.28 | 2.14 | 1.57 | 1.24 | 1.00 | 0.80 | 4.79 | 450 Ft. Lbs. |
| 7021626DD | GM 1 1/8”-26 Spline | 3.01 | 1.88 | 1.46 | 1.18 | 1.00 | 0.62 | 4.79 | 450 Ft. Lbs. |
| 7021626ED | GM 1 1/8”-26 Spline | 2.77 | 1.88 | 1.46 | 1.18 | 1.00 | 0.62 | 4.79 | 450 Ft. Lbs. |
| 7021626EL | GM 1 1/8”-26 Spline Special Heavy Duty 9 DP Road Race 6th Gear Sets |
2.77 | 1.88 | 1.46 | 1.18 | 1.00 | 0.84 | 4.79 | 450 Ft. Lbs. |
|
|
|
|

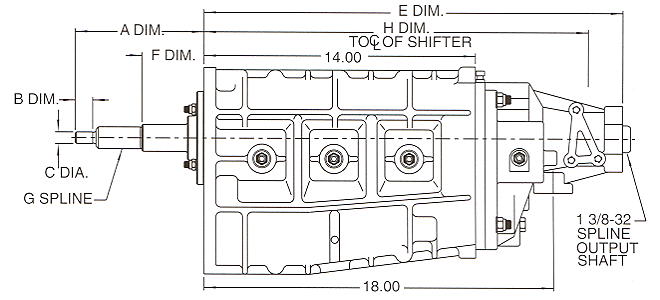

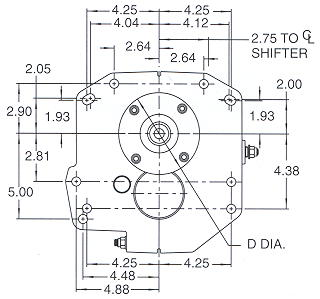

RICHMOND 6 SPEED ROD DIMENSIONS | |
 |
|
|
|
