GILBERT CHEVROLET - RICHMOND STREET FIVE SPEED TRANSMISSION | |
|
The Richmond Street 5 Speed manual transmission is used in performance cars needing dramatic improvements in acceleration. The 1:1 5th gear enables the Street 5 Speed to also maintain your original fuel economy. Key - richmondtransmission (There are only a few prices so these are in the Price and Parts Search with the GM stuff for now.) |
|||||||||||||
| |||||||||||||
|
WEB SITE NAVIGATION INFORMATION | |
| If you have you just came from a search engine and are stuck with no navigation, turn on Java Scripts in your Web browser, reload the page, then you can turn off Java Scripts again. Also, people using Internet Explorer have to use the pull down tab next to the back button to return to a search engine. More information on this is on our help page. |
| GM and GILBERT CHEVROLET part prices are in the Price & Parts search. Keys are to be used with the Price & Parts Search. Enter a Key, part number, GM, SC, or a key word, like 502, into the Price & Parts search to see if we have it on our site. Use GM for a list of both GM and GMPP parts. Use SC for a list of all GILBERT CHEVROLET exclusive parts. Aftermarket company prices are on downloadable Price Sheets or on their pages. The Page Search is for searching the pages of our Web site. More information on this is on our help page. |
 |
 |
|
|
RICHMOND TRANSMISSIONS NAVIGATION | |
| | Richmond Index | Super T- 10 Four Speed | Street Five Speed | Six Speed - ROD | Transmission Fluid | |
|
|
|
|
RICHMOND STREET 5 SPEED TRANSMISSION OVERVIEW | |
 |

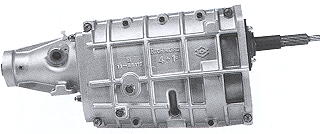

Richmond Street 5 Speed Five Speed Manual Transmission Click on the logo to visit Richmond’s Site. |
| For prices, enter the Part Number for one of the transmissions or just type in Richmond to get the prices for these transmissions. Type in transmission to get transmissions and transmission related parts. You can also use the key at the top of the page. | |
| The RICHMOND Street Five Speed transmission delivers the ultimate blend of performance and economy. Utilization of four extra low gear ratios provide dramatic improvements in acceleration, while a 1:1 fifth gear allows maintenance of original fuel economy. | |
 |
 |
 |
The Richmond Street Five Speed transmission delivers the ultimate blend of performance and
economy. Utilization of four extra low gear ratios provide dramatic improvements in acceleration, while a 1:1
fifth gear allows maintenance of original fuel economy. A LONG™ 5 speed shifter (P/N HN1000) is available separately.
No photo available, but the price for the shifter along with the transmission is in our price database.
Two Hurst shifters are also available separately (P/N 4070009, 10” stick and P/N 4070015, 7-1/2” stick.).
No pictures for these either. The prices for both are in the database.Technical Notes: 8 tooth speedometer gear. |
 |
|
|
|
|
|

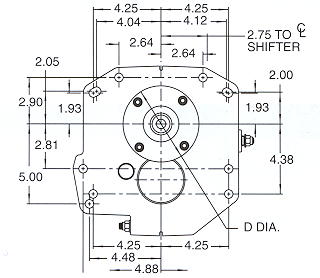

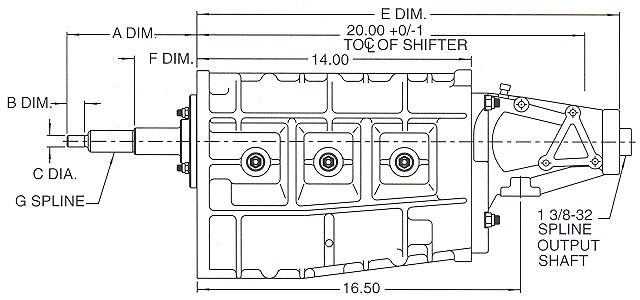

RICHMOND STREET 5 SPEED TRANSMISSIONS MOUNTING SPECIFICATION GUIDE | |
| P/N (All Ratio Letters) | Application | A Dim | B Dim. | C Dia. | D Dia. | E Dim. | F Dim. | G Spline |
| 7021710 | GM | 6.66 | 1.06 | .590 | 4.683 | 21.57 | 3.22 | 1-1/8” - 26 |
|
|
|
|
RICHMOND STREET 5 SPEED TRANSMISSIONS SPECIFICATIONS | |
| P/N | Description | 1st | 2nd | 3rd | 4th | 5th | Rev. | Torque |
| 7021710-A | GM 1-1/8” - 26 Spline | 3.28 | 2.13 | 1.57 | 1.24 | 1.00 | 4.79 | 450 Ft. Lbs. |
| Center Distance: | 3.50 Inches | Case & Extension Housing Material: | Aluminum |
| Oil Capacity: | 2 US Quarts | Controls: | Side Lever |
| Approximate Dry Weight: | 95 lbs. |
|
|
|
|

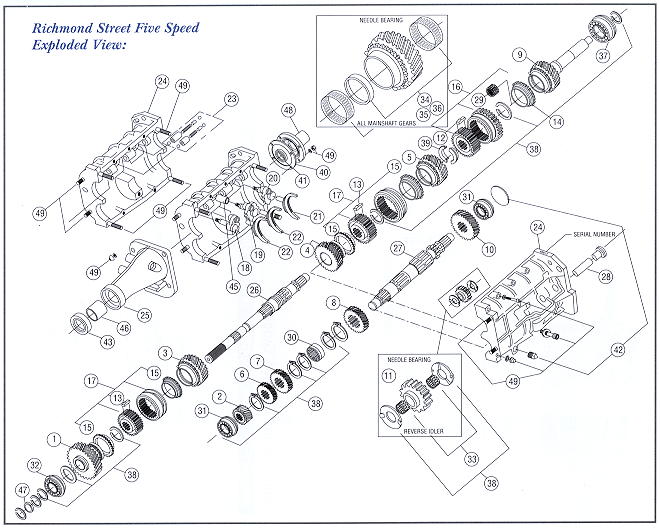

RICHMOND STREET FIVE SPEED TRANSMISSIONS EXPLODED PARTS VIEW | |
 |
|
|
|
