GEN 6 SHORT DECK BARE BLOCK DISCRIPTSION

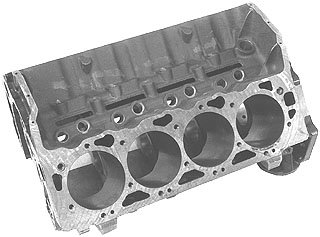

Gen VI Short Deck Bare Block “502”
Chevrolet Production 502 Block

P/N 10237292
This Gen VI cast iron block is a strong foundation for a big-block engine project. The “short deck” block was designed to meet the needs of a powerful and dependable 500ci engine for street or boat usage. The block’s cylinder walls are “siamesed” and are bored to 4.47”. The deck surfaces are reinforced to improve the head gasket sealing. Four-bolt main bearing caps are installed to reinforce cylinder barrels and strength to the bottom end.
Technical Notes: The distance from the crankshaft center to the deck surfaces is 9.80”. It is used on 502 engines assembly, and partial engine, and can use roller tappet or standard tappet.

GEN 6 SHORT DECK BARE BLOCK SPECIFICATIONS

Block Material: Cylinder Wall Type: Deck Height: Cylinder Bore Range: Bearing Cap Bolts: Cap Orientation: Cap Material:	Cast Iron Siamesed 9.800” 4.470-4.500” 4 Straight Cast Iron	Crankshaft Journal Dia.: Oil Sump Type: Crankshaft Seal: Design Max. Stroke: Weight (bare): Intended Usage: Fuel Pump Boss:	2.75” Wet 1-Piece 4.600” 269 lbs. Street - Modified None
Special Features: This block is good for 700 HP.
