VORTEC POWER XTREME 4x4 350 DESCRIPTION | |
 |

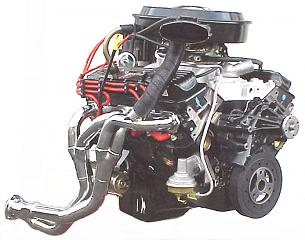

Vortec Power XTREME 4x4 350
P/N SC350VXEngine Designed For: 4 Wheel Drive and Sport Utility Vehicles, increase in Horsepower and Torque. This engine will replace any small block Chevrolet carburetor equipped non-emissions applications. |
 |
COMP CAMS Xtreme 4X4 Cams
Newest Design in Our Application Specific Camshafts.
Increases Horsepower In 4-Wheel Drives & Sport Utility Vehicles.
Increases Usable Torque in 4-Wheel Drives & Sport Utility Vehicles.
Accelerated valve Timing Events & Optimized Cylinder Pressure. |
|
|
|
|
VORTEC POWER XTREME 4X4 350 SPECIFICATIONS | |
| Horsepower: | 350 @ 5100RPM | Torque: | 368 @ 3000RPM, 390 @ 3800RPM |
| Max. RPM: | 5200 | Comp. Ratio: | 9.2:1 |
| Block: | #10105123 Four Bolt Main | Crank: | Nodular Cast Iron 1 Piece Seal |
| Connecting Rods: | #10108688 PM | Pistons: | Cast Aluminum |
| Spark Plugs: | AC MR43LTS | Distributor | GM HEI |
| Fuel: | 92 Octane | Damper: | 8” Degreed Timing Marks |
| Camshaft: | Comp Cams hyd. roller cam. The new XTREME 4x4 Design #08-411-8 Lift .474” I, .474” E Duration @ .050: 210° I,214° E |
| Heads: | Vortec Heads Cast Iron Fast-Burn 64cc 96-98 350 Truck head. This heads flows more air than a stock head. Raise Intake Port 170cc Intake Runners Valve size 1.94” I, 1.50” E |
| Rocker Arms: | Self Aligning Stamped Steel (Roller Rockers Optional) |
| Intake Manifold: | EDELBROCK #2116 Vortec Performer Dual carb pattern. |
| Carburetor: | #1904 EDELBROCK 795 CFM Q-jet with Electric Choke (Optional) |
| Also Includes: | 5 Quart Oil Pan, Timing Cover, and Valve Covers |
| Technical Note: This Engine does not have exhaust heat crossover in the cylinder heads. WHICH MEANS....This engine won’t allow an EGR valve to function. Also, since there are no heat crossover, hot air chokes on carburetors will not function. We recommend electric choke style carburetors. A closed style air cleaner with a hot air pipe from the exhaust manifold is recommended for cold weather operation. The above horsepower was obtained with headers. This engine requires a good exhaust system, headers are highly recommended. It has a standard exhaust bolt pattern. Some engines with the double front bolt pattern will not work with stock cast iron manifolds. | |
| Warranty: 12 months parts only. Some restrictions may apply. No warranty on marine engines or non-marine engines used in marine applications. All warranty work must be preformed at Chevrolet. | |
|
|
|
|
VORTEC POWER XTREME 4x4 350 OPTIONS | |
| Options | Price | *Labor | |
| A |
Dyno Testing, Break-In Calibration: Your engine will be completely tested and broke in (ready to run). Carb jetting distributor calibration set to a premium performance level. Includes a video of your engine on the dyno, with one test run. You will also receive dyno sheets showing power and torque output. |
None | $450.00 |
| B |
Ignition Wires And Looms. 1 - Uninstalled Price. (Order as B1) 2 - Price Installed. (Order as B2) 3 - Factory Style, Installed Only (Order as B3) |
$95.00 $95.00 $175.00 |
None $30.00 None |
| C |
1 - Fluidampr 7-1/4” SFI Approved (Order as C1) 2 - Fluidampr 7-1/4” Street (Order as C2) |
$285.00 $149.95 |
None None |
| D | 14” Auto Flexplate | $65.00 | $10.00 |
| E | 14” Auto Flexplate Bolt Kit For Option D | $6.00 | None |
| F | 14” Manual Flywheel | $155.00 | $10.00 |
| G | 14” Manual Flywheel Bolt Kit For Option F | $6.00 | None |
| H | #1904 Q-Jet Carb | $419.95 | None |
| I | GM Gear Reduction Starter | $225.00 | None |
| J |
Water Pumps 1 - Aluminum Short (Order as J1) 2 - Aluminum Long (Order as J2) 3 - Cast Iron Short (Order as J3) 4 - Cast Iron Long (Order as J4) |
$165.00 $165.00 $65.00 $65.00 |
None None None None |
| K | COMP CAMS roller tip roller rockers, self aligning style. | $145.00 | $60.00 |
| L | GM self aligning trunnion and tip roller rockers. | $285.00 | $60.00 |
| M | Oil Filter Adapter Kit | $19.95 | None |
| N | GM Chrome Valve Covers | $85.00 | None |
| O | GM Chrome Timing Cover | $24.00 | None |
| P | Closed Style HD Air Cleaner | $255.00 | None |
| Q | THORLEY TRI HEADERS HD flanges thicker wall tubing. Prices starting at.. | $295.00 | None |
| R | Marine*: Includes stainless valves, XTREME COMP CAMS marine cam #7116, EDELBROCK RPM intake CAMS marine cam #7116, EDELBROCK RPM intake #1410, marine 750cfm carb., and MSD marine ignition. |
$1250.00 | None |
| S | SUPER H.O.T. VORTEC, includes H.O.T. camshaft, RPM intake, LT-4 valve springs, screw in studs, GM roller rockers 421HP @ 5900RPM | $875.00 | None |
| T | Forged Steel Crank. Recommended option for R&S. | $465.00 | None |
| U | Throttle And Kick Down Brackets. Intake manifold is bolted on with a special bolt pattern. This will change the way some brackets will mount. | Call | Call |
| V | Mechanical Fuel Pump Kit. Includes the pump, plus all the parts to mount it with. | $75.00 | $20.00 |
| Warning - No warranty on this engine if used for Marine applications. | |||
|
|
|
