Pro-Billet Chevrolet V8

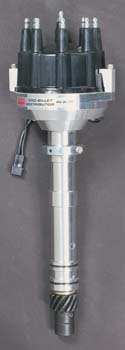

 MSD PRO-BILLET SMALL DIAMETER CHEVROLET V8 DISTRIBUTOR
MSD P/N 8570
  Back to distributor list.
Previous Back to Sallee's MSD main page. Next
MSD Pro-Billet Small Diameter, Chevrolet V8 Distributor
      This distributor was designed for racers and street rodders that have space limitations due to firewall interference, large air cleaners, or oversized intake manifolds such as tunnel rams.
     Like all MSD Pro-Billet distributors, this housing is constructed on a CNC-machine from6061-T6 aluminum. Proven performance features include a high output magnetic pickup and precision triggering. A fully adjustable mechanical advance allows you to tailor the advance curve to your specific application. A full selection of springs and bushings are supplied with each distributor.
     For high rpm reliability, the steel shaft is QPQ coated and is supported with a ball bearing at the top and a sintered steel bushing at the bottom. The Tufride coating reduces friction and allows much smoother higher rpm ranges and longevity over conventional bronze/steel shaft combinations.
Replacement Parts
Distributor Cap: P/N 8431
Distributor Rotor: P/N 8467
Distributor Gear: P/N 8531
Distributor Gear (Bronze): P/N 8471, P/N 8472 (+.006”)
Cap Hold Down Clamps: P/N 8493
Slip Collar: P/N 8539

Note: Must be used with 6, 7, 8, 9, or 10 Series Ignition. Supplied with cap and rotor. Will not accept a CAP-A-Dapt. Unit stands 5-5/8” to 6-3/8” above the intake manifold after being installed and is approximately 4-3/4” wide. This product is not legal for sale or use on pollution controlled vehicles.
