MSD 5 IGNITION CONTROL | |

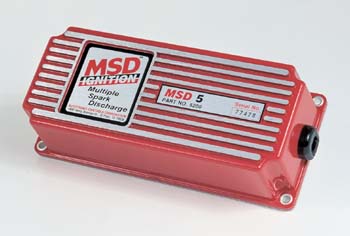

| MSD P/N 5200 |
|
|
MSD 5 Economy/Performance The MSD 5 is our entry level multiple spark ingition control. This inductive discharge ignition is designed to be used on stock vehicles with no performance upgrades such as a cam, intake manifold, or carburetor. Below 3,000 rpm, the MSD produces a series of sparks instead of just one. This ensures that the fuel is burned completely which in turn provides more power, smooth idle, quick starts and overall driveability improvements. The MSD 5’s powerful sparks are just the ticket to enhance the power of your foreign or domestic car’s ignition output. The MSD 5 can be triggered using points or the electronic amplifier on late model vehicles. Note: Not for use with magnetic pickup distributors or distirbutorless systems. Not recommended for Gerneral Motors HEI ignition systems. These products are legal to sell, distribute or install on vehicles in California according to Executive Order E.O.D-40-26; legal in all 50 states. Operating Specifications Operating Voltage: +12VDC, Negative Ground Current Requirements: 6 Amps Max RPM Range: 6,000 RPM (8 cyl.) Spark Series Duration: 20� Crankshaft Rotation Energy Output Max: 140 mJ Stored Energy (Inductive Ignition) Weight And Size: 1-1/2 lbs., 8” L X 3-1/2” W X 2-1/4” H Voltage Output Max: Primary 375V, Secondary 40,000V (Blaster Coil) |
|
|
|
