MSD 6A IGNITION CONTROL | |
| MSD P/N 6200 |
|
|

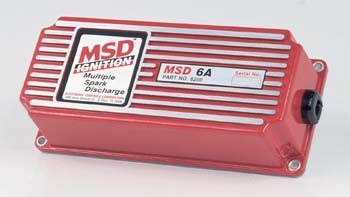

MSD 6A Ignition Control The MSD 6A is the base model of the capacitive discharge multiple spark 6 Series design. Whether you have a powerful street machine, hard working truck or street rod, the powerful multiple sparks of the MSD 6A will ensure complete combustion. Benifits such as quicker ET’s easier starting, reduced plug fouling, more power and even increased fuel economy can be expected with the 6A’s high energy multiple sparks. Like all of the MSD 6 Series Ignitions, the 6A will work with virtually any vehicle as long as it has a 12-18 volt electrical system. It can be triggered using breaker points, a magnetic pickup or the output of an electric amplifier. All necessary parts and wiring instructions are included. Note: The MSD 6A is made for 4, 6, and 8 cylinder vehicles. The 6A is OBD II Legal to sell, distirbute or install on vehicles in all the states under CARB Executive Number, D-40-33. Operating Specifications Operating Voltage: +10-18 VDC Negative Ground Current Requirements: 5 Amps-5,000 RPM & 10 Amps-10,000 RPM RPM Range: 15,000 RPM with 14.4 Volts Spark Series Duration: 20° Crankshaft Rotation Energy Output Max: 105-115 mJ Per Spark Weight And Size: 3 lbs., 8” L X 3-1/2” W X 2-1/4” H Voltage Output Max: Primary 460-480V, Secondary 45,000V (Blaster Coil) |
|
|
|
