MSD 6AL Ignition Control

 MSD 6AL IGNITION CONTROL
MSD P/N 6420

Back to ignitions list.
Previous Back to Sallee's MSD main page. Next

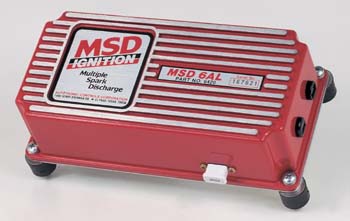

MSD 6AL Ignition Control
      The 6AL shares the same proven circuity of the 6A with the addition of a built-in adjustable rev limiter. The combination of powerful sparks with the safety of a Soft Touch Rev Control is what makes the 6AL the most popular ignition control in the world.
     MSD first developed the Soft Touch reve control to prevent overrev damage to your engine in the event of a missed shift or driveline failure. The rpm limit is adjustable in 100 rpm increments with MSD's plug-in modules. When the engine reaches your selected limit, the Soft Touch circutry begins dropping the spark to various cylinders. On the next cycle, these plugs are fired again to prevent fuel from loading up in the cylinder. The result is a smooth and accurate limiting action without backfires or roughness.
     The soft touch Rev Control also opens the door for you to add rpm accessories such as a Two Step Rev Control. A Two Step allows you to set two rpm limits, one for a holeshot rpm and another for overrev protection.
     The 6AL is supplied with rubber shock mounts and modules for 3,000, 6,000, 7,000, and 8,000 rpm.

Note: The MSD 6AL is made for 4, 6 (Even-Fire Only), and 8 cylinder engines. The 6AL is Legal to sell, distirbute or install on non-OBD II vehicles in California according to Executive Order E. O. D-40-26; legal in all 50 states.
Operating Specifications
Operating Voltage: +10-18 VDC Negative Ground
Current Requirements: 5 Amps-5,000 RPM & 10 Amps-10,000 RPM
RPM Range: 15,000 RPM with 14.4 Volts
Spark Series Duration: 20° Crankshaft Rotation
Energy Output Max: 105-115 mJ Per Spark
Weight And Size: 3 lbs., 8” L X 4” W X 2-1/4” H
Voltage Output Max: Primary 460-480V, Secondary 45,000V (Blaster Coil)
