502 RPM PRO-FLO EFI ENGINE DESCRIPTION | |
 |

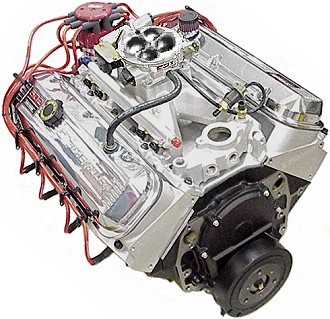

Chevrolet Fuel Injected 502 RPM PRO-FLO EFI Horsepower 540 @ 5600 RPM Torque 569 @ 4500 RPM Picture shows polished valve covers and Mallory distributor options. |
|
SC502PFEFI 502 RPM Pro-Flo® EFI Chevrolet took the ZZ502/502 long-block part number 12371204 and gave it fuel injected performance and economy. The Chevrolet Fuel Injected 502 RPM PRO-FLO EFI engine with it’s 540 @ 5600 RPM horsepower and torque rating of 569 @ 4500 RPM, will make your vehicle the talk of your block and with the optional Mallory distributor package and special polished valve covers will make a splash at any car show. This engine is a great combination and alternative to GM's Ram Jet 502. Our 502 RPM Pro-Flo EFI engine puts out 526 horsepower at 5100 RPM compared to the Ram Jet 502’s 502 HP at 5100 RPM and is rated at 540 horsepower at 5600 RPM. If you have been looking for a more powerful fuel injected big-block crate engine, you have found it now. We didn't stop with just adding Edelbrock's Performer RPM Pro-Flow® EFI system (P/N 3550) and Edelbrock calibration chip (P/N 3555), We also made a roller rocker upgrade to Crower stainless rockers (P/N 73605). Then we added GM red 8mm plug wires and loom kit (P/N 12495079), GM gear reduction starter (P/N 09000852), GM #4 Rapid Rire spark plugs (P/N 25164642), and a GM large cap HEI distributor (P/N 1104067) for the finishing touches. Our Race Shop also added two options to the standard Dyno testing option, a Mallory small cap distributor kit designed using a distributor designed by both Edelbrock and Mallory to work specifically with Edelbrock’s Pro-Flow EFI System, and they polished GM’ P/N 12495488 custom die cast aluminum valve covers to dress this engine up and give it dazzling appearance. |
|
| Note: More possible options can be found under our ZZ502/502 Premium Engine Kit P/N 12371171 options. | |
|
|
|
|
502 RPM PRO-FLO EFI ENGINE SPECIFICATIONS | |
| Displacement: | 502 cubic inches | |
| Horsepower: | 540 @ 5600 rpm | |
| Torque: | 569 @ 4500 rpm | |
| Max. Rec. RPM: | 5800 | |
| Comp. Ratio: | 9.6:1 | |
| Engine Block: | 10237292 Cast Iron, Four Bolt Main Caps. | |
| Bore: | 4.47” | |
| Stroke: | 4.00” | |
| Crankshaft: | 10183723 Forged Steel | |
| Connecting Rods: | 10198922 Forged 4340 Steel, Shot peened, 7/16” bolts. | |
| Pistons: | 12533507 Forged Aluminum | |
| Piston Rings: | 12524293 | |
| Camshaft: | 12366543 Steel Hydrolic roller: (Lift: .527” I, .544” E), (Duration @ .050” 224° I, 234° E). | |
| Timing Chain: | 03891519 Single Roller | |
| Cylinder Heads: | 12363390 High Velocity 356-T6 Cast Aluminum Alloy, Oval Port, 110cc Semi-Open Combustion Chambers; With Stainless Steel Valves (2.25” I, 1.88” E), Springs, Valve Spring Caps, Keys, and Valve Stem Seals | |
| Intake Valve Dia.: | 12366987 2.25” Stainless Steel | |
| Exhaust Valve: | 12366988 1.88” Stainless Steel | |
| Valve Springs: | 12462970 | |
| Valve Lash: | Zero | |
| Valve Covers: | 12495488 Custom die cast aluminum with Chevrolet name and Bow Tie logo. | |
| Rocker Arms: | 73605 Crower Stainless Roller Rocker, 1.7:1 ratio | |
| Intake Manifold: | 3550 Edelbrock Performer RPM PRO-FLO® EFI System | |
| Distributor: | 01104067 HEI | |
| Starter: | 09000852 Gear Reduction | |
| Spark Plugs: | 25164642 #4 Rapid Fire - Gap .035, R43XLS - Gap .035 | |
| Ignition Timing: | 8° BTDC @ 800 RPM, 36° Total @ 5,000 RPM | |
| Spark Timing: |
(Disconnected) 36° at 3600 rpm with Distributor Vacuum. Recommended starting point for full loaded power. |
|
| Flex Plate: | 10185034 14” for automatic transmissions. | |
| Fuel: | Premium Unleaded 92 Octane | |
|
Technical Notes: • For manual transmission applications use flywheel P/N 14096987 and a suitable 11” clutch assembly. • Distributor (P/N 93440886 or 88961867) or melonized distributor gear (P/N 10456413) must be used on all crate engines with steel camshafts. |
||
|
|
|
|

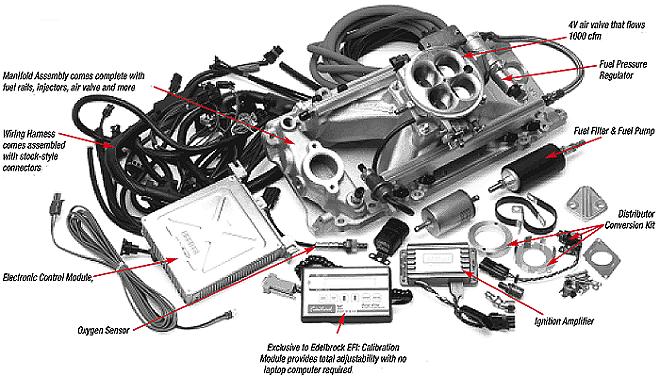

EDELBROCK PERFORMER RPM PRO-FLO® EFI SYSTEM | |
 |
|
|
|
|
502 RPM PRO-FLO EFI ENGINE OPTIONS | |
| Dyno Testing: SCDTOP |
Dyno testing is offered as an option. |
| Valve Covers: SC502PFEFIA |
Option A: Special Polished GM P/N 12495488 Custom Die Cast Aluminum Valve Covers. |
| Distibutor Package: SC502PFEFIB |
Option B: Includes, Mallory small cap distributor 6148201 (This Distributor was designed by Mallory and Edelbrock to work with the Edelbrock Fuel Injection Systems), E-coil 30440, HyFire box 685, HEI cap 208M, rotor 307M, and adapter kit 29316. (Order as option S3.) |
|
Technical Notes: Distributor P/N 01104067
or melonized distributor gear P/N 10456413
must be used on all crate engines with steel camshafts. Price Note: Prices for this engine and the engine options are in the price database. Just enter the part number and click on GO or Submit for all prices. |
|
|
|
|
|
502 RPM PRO-FLO EFI ENGINE DYNO RESULTS | |
| RPM | Torque | HP | RPM | Torque | HP | RPM | Torque | HP | RPM | Torque | HP |
| 2100 | 515 | 210 | 3100 | 544 | 315 | 4100 | 561 | 438 | 5100 | 542 | 526 |
| 2300 | 515 | 225 | 3300 | 546 | 343 | 4300 | 565 | 463 | 5300 | 528 | 533 |
| 2500 | 529 | 252 | 3500 | 539 | 359 | 4500 | 569 | 488 | 5500 | 512 | 536 |
| 2700 | 546 | 280 | 3700 | 546 | 385 | 4700 | 567 | 508 | 5600 | 517 | 540 |
| 2900 | 547 | 307 | 3900 | 552 | 410 | 4900 | 555 | 517 |
|
|
|
