12498354 - Adjustable Strut/Lowering Spring Package
For use on 1999 - 2002 Chevrolet Monte Carlo; 2000 - 2002 Chevrolet Impala; 1997 - 2002 Pontiac Grand Prix. These lowering springs reduce the front ride height by .9 inches and rear ride height by .7 inches. Higher rate coil springs add to cornering ability and complement the adjustable struts. Struts accommodate compression/rebound adjustment easily from underhood (front) or in trunk (rear) with included adjuster knob. Adjustments can be made from a “firm” setting allowing maximum cornering to a “soft” setting approaching the ride quality of “stock” components.
This kit includes the following items listed by part number quantity and description:
P/N 11516382 - 4 - Nut, front suspension strut
P/N 22152030 - 2 - Washer, front suspension strut
P/N 22179011 - 2 - Mount assembly, front suspension strut
P/N 22167000 - 2 - Retainer, front suspension strut mount
P/N 00908554 - 2 - Bearing assembly, front suspension mount
P/N 22166979 - 2 - Seat, front spring
P/N 22181807 - 2 - Insulator, front upper spring
P/N 22166978 - 4 - Shield, front suspension strut
P/N 22166890 - 4 - Cup, rate front suspension shock
P/N 22181835 - 2 - Insulator, front lower spring
P/N 10283611 - 2 - Washer-rear suspension strut mount
P/N 10445033 - 1 - Mount assembly rear suspension strut
P/N 10445032 - 1 - Mount assembly rear suspension strut
P/N 10286793 - 2 - Insulator, rear lower spring
Technical Notes: Not Recommended for vehicles carrying high occupant or cargo loads or tow vehicles. Kit includes two front and two rear assembled strut assemblies. |
-- |
12498521 - Front Strut Service Part
This service part is used for the front strut on the adjustable strut and lowering spring package P/N 12498354. Parts include a front strut, plastic washer, and adjuster knob. |
-- |
12498522 - Rear Strut Service Part
This service part is used for the rear strut on the adjustable strut and lowering spring package P/N 12498354. It includes a rear strut, plastic washer, and adjuster knob. |
-- |
12498642 - Heavy Duty Rear Stabilizer Bar Kit
For use on 1999 - 2002 Chevrolet Monte Carlo; 2000 - 2002 Chevrolet Impala; 1997 - 2002 Pontiac Grand Prix. This 19mm bar enhances cornering by reducing body roll. The kit includes stabilizer bar P/N 10274610 and bushings P/N 10415925. |
-- |
12498643 - Heavy Duty Front Stabilizer Bar Kit
For use on 1999 - 2002 Chevrolet Monte Carlo; 2000 - 2002 Chevrolet Impala; 1997 - 2002 Pontiac Grand Prix. This 34mm bar enhances cornering by reducing body roll. The kit includes stabilizer bar P/N 10404184, bushings P/N 10403188, and end links P/N 10403402. |
-- |
12498648 - Strut Braces
For use on 1999 - 2002 Chevrolet Monte Carlo; 2000 - 2002 Chevrolet Impala; 1997 - 2002 Pontiac Grand Prix. These are production Buick strut tower braces designed to minimize body flex. The kit includes two strut tower braces, hardware, and installation instructions. The part number for one strut tower brace only is 12456148. |
-- |

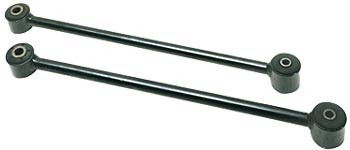

12498649 - High Performance Tubular Rear Trailing Arm Kit
For use on 1999 - 2002 Chevrolet Monte Carlo; 2000 - 2002 Chevrolet Impala; 1997 - 2002 Pontiac Grand Prix. This kit increases rear suspension performance by eliminating rear suspension flex. It includes two rear trailing arms. |
(Pic) |
