GILBERT CHEVROLET - GM GOODWRENCH 5.7L 350CI V8, 73-85 (UNIVERSAL ENGINE) | |
|
This GM Goodwrench 5.7 liter 350 cubic inch Universal Engine is an excellent foundation for just about any year and any
high performance project. For those that want a performance package, we offer our Universal engine upgrade package, the Performance 285HP. If that still
isn’t enough, we offer even more options, including building a complete turnkey engine for you if that is what you need. Keys - scperformanceeng, gmperformanceeng, or gmgoodwrencheng for SC, GM, or Goodwrench engines. Use allengine for a complete list of all three. |
|||||||||||||
 |
| ||||||||||||
|
WEB SITE NAVIGATION INFORMATION | |
| If you have you just came from a search engine and are stuck with no navigation, turn on Java Scripts in your Web browser, reload the page, then you can turn off Java Scripts again. Also, people using Internet Explorer have to use the pull down tab next to the back button to return to a search engine. More information on this is on our help page. |
| GM and GILBERT CHEVROLET part prices are in the Price & Parts search. Keys are to be used with the Price & Parts Search. Enter a Key, part number, GM, SC, or a key word, like 502, into the Price & Parts search to see if we have it on our site. Use GM for a list of both GM and GMPP parts. Use SC for a list of all GILBERT CHEVROLET exclusive parts. The Page Search is for searching the pages of our Web site. More information on this is on our help page. |
 |
 |
|
|
GM GOODWRENCH 5.7L 350CI V8 BASED CRATE ENGINES NAVIGATION | |
| GM Goodwrench Engine Main Page | GM Goodwrench 350ci Universal Engine Main Page |
| GM Goodwrench Engine Warranty | Sallee Performance 350ci Universal Engine Pictures |
| GMPP 350/290 HP | Goodwrench 350 Universal Engine Installation Guide |
| GMPP 350/290 HP Installation Guide | GILBERT CHEVROLET 325 HP HO 350 Crate Engine |
| We have more GM and GILBERT CHEVROLET Performance Engines available. We have more GM Stock Replacement Long-block Goodwrench Engines available. We have more “Gen 3” and “Gen 4” Design Engines available. (LS1, LS2, LS6, LQ4, LS7) |
|
|
|
|
|
GM GOODWRENCH 5.7 LITER (UNIVERSAL ENGINE) | |
 |
 |
| Gm Goodwrench 5.7 Liter/350 CI V-8 1973-85 GM Goodwrench 36 months of 50,00 mile Engine Warranty. P/N 10067353 Click here for a larger picture. |
|
|
The Goodwrench replacement engine is an ideal power plant for a
performance enthusiast working on a budget. The 350ci Goodwrench
small-block is assembled with all new components. It has an
8.5:1 compression ratio, four-bolt main bearing caps, a cast
nodular iron crankshaft, and a hydraulic camshaft. The cylinder
heads have 1.94” intake valves and 1.50” exhaust valves. The
Goodwrench engine is a complete assembly, less intake and
exhaust manifolds, torsional damper, water pump, pulleys,
distributor, spark plugs, flywheel, clutch, and components.
Includes: Timing cover, oil pan, and valve covers.
Engine comes as shown in the pictures above. Equipped with a GM Performance Parts aluminum intake manifold, ignition system, and chromed accessories, a Goodwrench engine can provide exceptional performance in a street rod, street machine, pleasure boat, or truck. Approximate horsepower is 250 HP depending on how it is equipped. This Goodwrench engine is an excellent foundation for just about any year and any high performance project. |
|
|
|
|
|
GM GOODWRENCH 5.7 LITER (UNIVERSAL ENGINE) SPECIFICATIONS | |
| Horsepower¹: | 249 HP @ 5,000 RPM | Torque¹: | 304 FT/LBS @ 3,500 RPM |
| Redline: | 5,200 RPM | Comp. Ratio: | 8.50:1 |
| Heads: | Cast Iron, 76 cc | Valves: | 1.940” I, 1.500” E |
| Camshaft Lift: | Hydraulic; 0.390” I , 0.410” E | Duration @ 0.050”: | 195° I, 202° E |
| Block: | 4 Bolt Main, 2 Piece Rear Main Seal, 4.000” Bore |
| Crankshaft: | Cast Iron Nodular, 3.480” Stroke |
| Spark Plug: | R44TS, Gap @ .035 For Points Distributor or .045 For HEI Distributor |
| Ignition Timing: | For most applications it should be 10 to 12 BTDC°, Total timing, which includes base setting plus centrifugal advance, should not exceed 36° @ 3,000 rpm. |
| Note¹ - Numbers are for a engine that had a cast iron intake, Q-Jet Carb., HEI distributor, 1-5/8” headers and open exhaust installed prior to dyno testing. | |
|
|
|
|
GILBERT CHEVROLET’S PERFORMANCE 285HP, 5.7L (UNIVERSAL ENGINE) UPGRADE | |
 |
|
|
GM Goodwrench 350 (Universal Engine) Upgrade Package GILBERT CHEVROLET’s Performance 285HP - P/N SC285GW Engine pictures are with chrome option 1 installed. |
|
|
For the person who wants just a little more power than stock,
we installed a GM Performance camshaft kit P/N 12353917,
a Performer intake manifold, and an damper ( 8” HD Balancer). Click here to see enlarged pictures. Warranty Note: The GM Goodwrench warranty applies only to the base long block engine (P/N 10067353) for P/N SC285GW. Upgrade parts, other parts, and optional parts are only covered by a 12 month parts only warranty. Additional Options To The Basic Goodwrench Performance 350:
1) Chrome - valve covers, timing cover, damper pointer, dip stick, breather, and valve cover spreader bars.
Also included are: Stainless - ARP timing cover bolts and intake bolts. $85.002) Proform HEI Dist. $125.00 |
|
|
|
|
|
GILBERT CHEVROLET’S PERFORMANCE 285HP, 5.7L (UNIVERSAL ENGINE) SPECIFICATIONS | |
| Horsepower¹: | 285 HP @ 4,600 RPM | Torque¹: | 355 FT/LBS @ 3,600 RPM |
| Redline: | 5,200 RPM | Comp. Ratio: | 8.50:1 |
| Heads: | Cast Iron, 76 cc | Valves: | 1.940” I, 1.500” E |
| Rocker Arms: | 1.5 ratio | Camshaft Lift: | Hydraulic; 0.420” I , 0.442” E |
| Crankshaft: | Cast Iron Nodular, 3.480” Stroke | Duration @ 0.050”: | 204° I, 214° E |
| Block: | 4 Bolt Main, 2 Piece Rear Main Seal, 4.000” Bore |
| Spark Plug: | R44TS, Gap @ .035 For Points Distributor or .045 For HEI Distributor |
| Ignition Timing: | For most applications it should be 10 to 12 BTDC°, Total timing, which includes base setting plus centrifugal advance, should not exceed 36° @ 3,000 rpm. |
| Note¹ - Numbers are for a engine that had an Edelbrock Performer intake manifold, 1904 Edelbrock Q-Jet Carb., HEI distributor, 1-5/8" headers and open exhaust installed prior to dyno testing. | |
|
|
|
|
MORE PERFORMANCE 285HP OPTIONS FOR THE PERSON THAT NEEDS MORE .... | |
 |
 |

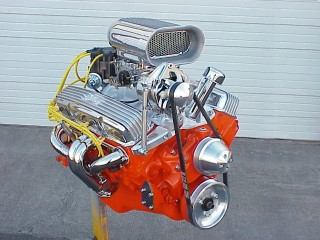

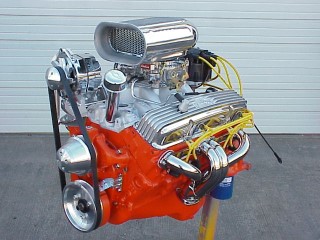

| The two pictures above are of a custom Goodwrench Universal Engine that our Race Shop built for one of our customers. They had me take pictures of it before they shipped it out, so people could see that there is more to options then just what is listed below here. This isn’t the only custom crate engine they have made. It just happened to be the next one they made after deciding they needed pictures of one they have done, put on the site. I believe they said this one was going into a Model T. I have a page made, where you can see more pictures of this custom engine. Our Race Shop has made custom built up crate engines for a wide range of applications and customers including Hollywood. One of their custom engines was in the Green Hornet’s car in that recent movie of not too many years ago. | |
| Options | Price | *Labor | |
| A |
Dyno Testing, Break-In Calibration: Your engine will be completely tested and broke in (ready to run). Carb jetting distributor calibration set to a premium performance level. Includes a video of your engine on the dyno, with one test run. You will also receive dyno sheets showing power and torque output. |
None | $495.00 |
| B |
MSD Distributor upgrade. Includes a billet distributor, high output coil, 6AL box with rev limiter produces a hotter spark which equals more horsepower. This distributor is also required for some cars having fire wall clearance problems. |
Call | Call |
| C | Ignition wires and looms. Uninstalled price. Price installed. Factory Style installed is only |
$95.00 $125.00 $175.00 |
None None None |
| D | Fluidampr 7 1/4" SFI approved. Fluidampr 7 1/4" Street |
$285.00 $149.95 |
None None |
| E | SFI flexplate 153T or 168T (This option is not available for this engine.) | N/A² | N/A² |
| F | Gear reduction starters, starting at... | $177.00 | None |
| G | Special calibrated carbs Holley, Q-Jet, Edelbrock. G1 - Holley 750 Vacuum (Order as G1) G2 - Performer Edelbrock with electric choke. (Order as G2) G3 - Modified Holley, calibrated. Includes secondary metering block, secondary spring, fuel line, clear site plugs, and correct jetting. (Order as G3) |
$285.00 $265.00 $385.00 |
None None None |
| H | March aluminum pulleys, brackets. | Call | Call |
| I | Light weight 153 tooth manual flywheel. (This option is not available for this engine.) | N/A² | N/A² |
| J | 168 Tooth manual flywheel. | $185.00 | None |
| K | Edelbrock short or long aluminum water pump. | $165.00 | None |
| L | Fuel pump kit (chrome mechanical) includes all parts to mount fuel pump. | $85.00 | None |
| M | ARP stainless bolt kits. | Call | Call |
| N | TURNKEY we can make your dreams come true gives us a call. | Call | Call |
| O | Oil filter adapter kit. Includes oil filter, adapter, bolts. | $27.95 | None |
| P | Chrome timing chain cover. (This option is not available for this engine.) | N/A² | N/A² |
| Note* - Additional cost if we install the item. Note² - This option is not available for this engine. | |||
|
|
|
