For those people that want a “383 Stroker” or just something a step above the ZZ450.
Our Race Shop not only came up with a stroker engine, but also an improved version of the much acclaimed ZZ430 and HT 383 crate engines.
The full ZZ383-500 “383” engine is rated at 500 HP @ 5,700 RPM, 491 FT/LBS @ 4,600 RPM. This is a full 50 horsepower more then the ZZ450, and it is still streetable and runs on pump 92 octane premium gas. The ZZ383-500 is an engine that is exclusively made by GILBERT CHEVROLET. You can’t get this engine anywhere else.
Keys - scperformanceeng, gmperformanceeng, or gmgoodwrencheng for SC, GM, or Goodwrench engines. Use allengine for a complete list of all three. |
 |
|
 |
 |
ZZ383-500 “383 Stroker” 500 HP @ 5,700 RPM, 491 FT/LBS @ 4,600 RPM, P/N SCZZ383500
Anniversary ZZ383-500A, P/N SCZZ38350TH |

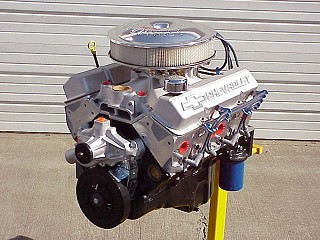

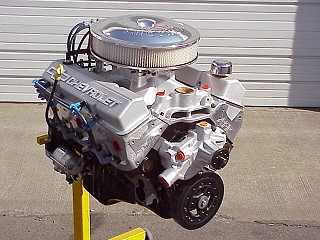

GILBERT CHEVROLET has a “New” 383 c.i.d. crate engine, the ZZ383-500, to add to our line up. The new ZZ383-500 puts out an impressive 500 hp @ 5,700 rpm and 491 ft/lbs. @ 4,600 rpm of torque. GILBERT CHEVROLET starts with the GM 383 short-block as the foundation for the ZZ383-500 and adds to it all the tried and proven components that combine to produce this engine. Keeping with the goal of making this engine useable for street and strip applications, we chose parts that were well suited to this application, like the hydraulic roller cam which has great idle, vacuum, and streetability characteristics. We added the AFR 6155 Rev. Kit to help the hydraulic lifters function effectively at high rpm.
The top end of the engine consist of a pair of special AFR 195cc cylinder heads and an Edelbrock Victor Jr. single plane intake manifold to help the engine breath throughout the rpm range set as the goal for this engine. The AFR heads have 58cc combustion chambers, which helps the ZZ383-500 attain a 10:1 compression ration, and the ZZ4 plug pattern. The Edelbrock intake manifold is good up to 8000 rpm which is more then adequate for the maximum rpm of 6,500 for this engine.
To finish off the ZZ383-500, we added the new Holley 0-82751 4150 Street Hp 750 cfm carburetor to keep up with the demands of this engine and the Proform 141-693 Chevrolet Clear Anodized Aircraft Aluminum Plain 14” air cleaner for its low profile, to aid in hood clearance, and the overall show quality appearance it give this engine.
At this time we do not have a base engine package put together for this engine, but if enough people express interest in one, we will be more then happy to put one together for everyone.
As part of the celebration of the GM small-block V8 50th anniversary, we made a special version of the ZZ383-500 called the ZZ383-500A which features special black power coat valve covers and the black painted Proform low profile air cleaner. You can read more about this and see pictures of this version on our page made specially for this. This version of the ZZ383-500 will only be produced for the year 2005. |
| Parameter |
Specification |
| Horsepower: |
500 @ 5,700 RPM |
| Torque: |
491 @ 4,600 RPM |
| Max. Rec. RPM: |
6,500 RPM |
| Comp. Ratio: |
10.1:1 |
| Partial Engine: |
GM P/N 12499106, 383ci |
| Block: |
P/N 88962516, Cast Iron, Four Bolt Main, 383 Stroke |
| Crankshaft: |
12489436 Forged 4340 Steel |
| Connecting Rods: |
P/N 12497624 Stroker PM |
| Pistons: |
P/N 12499103 High Silicon .005 O/S |
| Piston Rings: |
12499107 set .005 O/S |
| Camshaft: |
P/N 2204, Edelbrock Hyd. Roller, Lift (.539” I, .548” E), Duration @ .050” (234° I, 238° E) |
| Timing Chain: |
P/N 12371043, Single Roller Design |
| Timing Cover: |
P/N 12342089 GM, Chrome (Proform 141-215) |
| Timing Tab: |
P/N 12342011 GM, Chrome (Proform 141-202) |
| Lifters: |
P/N 875-16 “R” Series, Comp Cams Pro Magnum Hydraulic Roller. |
| Cylinder Heads: |
P/N 1038, Special AFR 195cc, 58cc combustion chamber |
| Cylinder Head Gasket: |
P/N 10105117 GM |
| Intake Valves: |
P/N 7204 AFR 2.020” |
| Exhaust Valves: |
P/N 7219 AFR 1.600” |
| Valve Springs: |
P/N 8020 AFR, Standard Hydraulic, 1.450” OD |
| Valve Spring Ret.: |
P/N 8510 AFR, Standard 10° 4140 Chrome Moly, 1.450” OD |
| Valve Seal: |
P/N 6611 AFR |
| Valve Spring Shims: |
P/N 8043 AFR, Hardened |
| Valve Lash: |
Hydraulic |
| Push Rods: |
P/N 25730 Manley |
| Rocker Arms: |
P/N 1301-16 Comp Cams or P/N 10750-16 Crane Cams (Your Choice) |
| Rev. Kit: |
P/N 6155 AFR (Page) |
| Spark Plugs: |
P/N 88901233 GM, Gap @ .035 For Points Distributor Or .045 For HEI Distributor |
| Intake Manifold: |
P/N 2975 Edelbrock Victor Jr., Port Matched To Heads |
| Intake Gasket: |
P/N 1205 Fel-Pro |
| Ignition Package: |
P/N 6420 MSD 6AL Box, P/N 8207 MSD Blaster Coil, P/N 85551 MSD Pro Billet Distributor |
| Ignition Timing: |
12° BTDC @ 800 RPM, 36° total @ 3,200 RPM with vacuum advance line disconnected and plugged. This setting will produce 36° of total advance at wide open throttle (WOT). |
| Fuel: |
92 Octane |
| Oil Pan: |
P/N 12557558 5 Quart Camaro/Caprice |
| Oil Pan Gasket: |
GM P/N 10108676 |
| Oil Filter: |
PF1218 |
| Oil Breather: |
P/N 141-616 Proform, Chrome |
| Oil Fill Cap: |
None, remove oil breather, for oil filling. |
| Valve Cover: |
P/N 12480127 GM, Bow Tie Cast Aluminum |
| Damper: |
P/N 12498008, Balanced 383 Stroker |
| Flex Plate: |
P/N 14088765, 153 Tooth |
| Water Pump: |
P/N 8810 Edelbrock, Short Style Or P/N 8811 Edelbrock, Long Style |
| Air Cleaner: |
P/N 141-693 Proform, Chevrolet Clear Anodized Aircraft Aluminum Plain 14”
(You can choice between any Proform air cleaner in exchange for 141-693 except 141-790.) |
| Carburetor: |
P/N 0-82751 Holley, 4150 Street HP, 750 CFM |
| Starter: |
P/N 10455709 GM, High Torque Gear Reduction |
| Starter Bolts: |
P/N 430-3505 ARP, ARP®300 100% Maintenance Free Stainless Steel. |
| Plug Wire/Loom Kit: |
Your Choice Of Either Listed Below:
GM Red 8 MM Wires (Performance or Bow Tie), Stainless Wire Looms
Moroso Blue Ultra 40 Wires, Moroso Wire Looms |
| Options |
Price |
*Labor |
| A |
Dyno Testing, Break-In Calibration:
Your engine will be completely tested and broke in (ready to run). Carb jetting distributor
calibration set to a premium performance level. Includes a video of your engine on the dyno,
with one test run. You will also receive dyno sheets showing power and torque output. |
None |
$495.00 |
| B |
March aluminum pulleys, brackets. |
Call |
Call |
| C |
Carb Fuel Line: 641270 Russell, 18 AN Fittings. Also included are fittings and hose from carb fuel line to fuel pump. |
$198.00 |
None |
| D |
P/N 14088646 GM light weight 12 3/4” 153 tooth manual flywheel. |
$251.60 |
None |
| E |
168 Tooth manual flywheel. |
$185.00 |
None |
| F |
Fuel pump kit (chrome mechanical) includes all parts to mount fuel pump. |
$85.00 |
None |
| G |
ARP stainless bolt kits. |
Call |
Call |
| H |
TURNKEY we can make your dreams come true gives us a call. |
Call |
Call |
| Note* - Additional cost if we install the item. Note² - This option is not available for this engine. |
