GMR 350/400 CIRCLE TRACK ENGINE DESCRIPTION | ![]() |
![]() |
![]() |

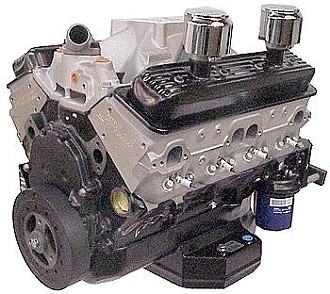

88958604 GMR 350/400 Circle Track Engine Great racing power at a reasonable cost (400 HP at 5500 RPM - Torque 400 @ 4500 RPM)
This is a factory sealed crate engine package, complete from intake manifold, stamped steel valve covers with racing style
breathers, and 8 quart dual kick-out circle track racing oil pan. The Fast Burn 400 engine is a great value with the 1053
forged steel crankshaft, aluminum heads with 2.00”/1.55” valves, hydraulic roller lifters, and an HEI distributor.
GM uses the 385 horsepower Fast Burn 385 as the base for this engine.Technical Notes: These engines are sealed at the intake manifold, cylinder head, front cover, and oil pan with special twist off bolt heads. The 400 HP @ 5500 RPM was derived from a superflow dyno using a 4 barrel 650 cfm Holley carburetor P/N 80541-1, 32” long by 1-5/8” to a 1-3/4” stepped header with a 3” collector, and 92 octane unleaded gasoline. This engine package DOES NOT include a water pump. Oil pan clears most GM rear steer chassis with stock engine location. Oil pan is 7” deep at sump. |
![]() |
![]() |
![]() |
![]() |
GMR 350/400 CIRCLE TRACK ENGINE SPECIFICATIONS | ![]() |

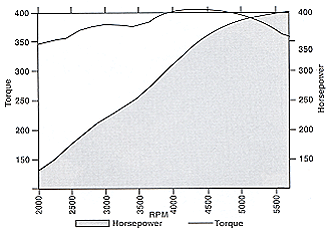

Horsepower: | 400 @ 5,500 RPM |
Torque: | 400 ft./lbs. @ 4,500 RPM |
Max. Rec. RPM: | 5,800 |
Compression Ratio: | 9.6:1 |
Block: | 10105123 Cast iron four bolt with 1-piece rear main seal. |
Crankshaft: | 12556307 Forged 1053 Steel |
Connecting Rods: | 10108688 PM Steel |
Pistons: | 10159436 High silicon aluminum with offset pins. |
Piston Rings: | 12528817 |
Camshaft: | 10185071 Hydraulic Roller; Lift: .474” I, .510” E; Duration @ .050: 208° I, 221° E |
Timing Chain: | 14088783 |
Cylinder Heads: | 12464298 Aluminum, 62cc combustion chambers. |
Intake Valves: | 12555331 2.0” |
Exhaust Valves: | 12551313 1.55” |
Valve Springs: | 12551483 LT4 Chrome Silicon |
Rocker Arms: | 10089648 1.5 Ratio |
Intake Manifold: | 12496822 Aluminum High Rise, Single Plane |
Distributor: | 01104067 GM HEI |
Valve Lash: | Zero |
Spark Plugs: | FR5LS Gap @ .035, Rapid Fire #5 Gap @ .045 |
Ignition Timing | 10° BTDC @ 800 RPM; Max. 32° Total @ 4,000 RPM with vacuum advance disconnected. |
Fuel: | 92 Octane Unleaded Gasoline |
Lifters: | Hydraulic Roller |
Oil Pan: | 25534354 8 Quart Black Powder Coated Circle Track With Oil Filter. It includes a full louvered windage tray, three crankshaft scrapers, six trap doors, two runners, oil temp fitting provision, oil level plug, 7” deep sump, and a 3-1/2” kickout on both sides. |
Valve Covers: | 25534359 Valve cover kit with breather tube |
Oil Breather: | 25534355 Valve cover breather kit |
Rocker Arm Nut: | 25534352 Special, ”kool nut design” |
Technical Notes: Carburetor, spark plug wires, starter, oil filter and oil filter adaptor, and exhaust manifolds are not included. Distributor P/N 01104067 or melonized distributor gear P/N 10456403 must be used on all crate engines with steel camshafts. |
![]() |
![]() |
![]() |
